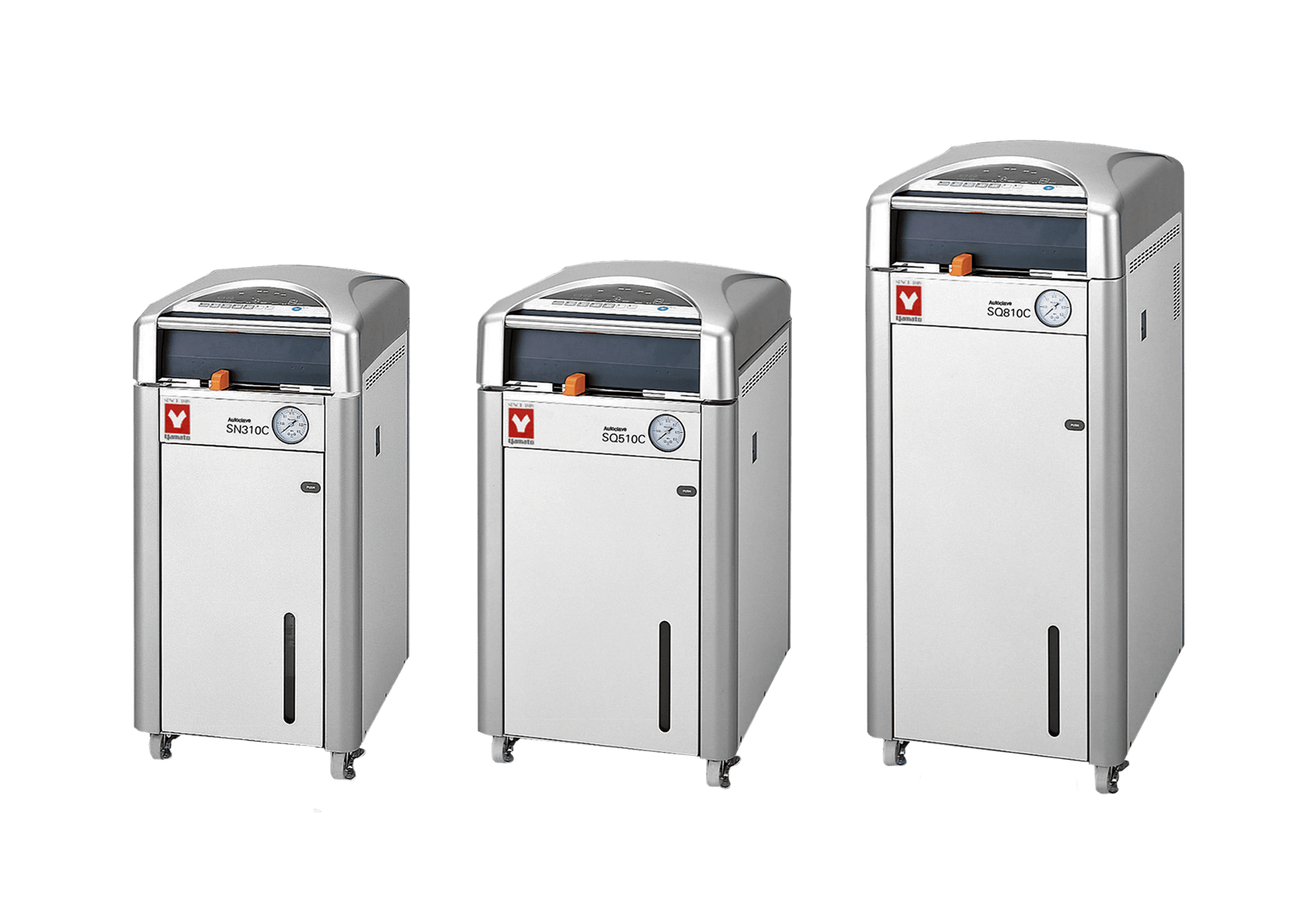

Yamato SN Series

Lab Autoclaves | Standard

SN210C/310C/510C, SQ510C/810C

High-performance, easy operation and ergonomically designed autoclave, standard equipped with cooling fan to shorten cool down time.

Features

• Maximum sterilizing temperature goes up to 135℃, suitable for protein modification.
• By simple setting and operation, these sterilizers manage ordinary sterilization, sterilization of culture mediums and liquids, and dissolution of culture mediums.
• Custom programs can be saved for repeated use.
• Standard equipped with cooling fan to shorten cool down time.
• The control panel and display are conveniently located on the front of the lid for easy viewing and operation.
• Equipped with multiple pressure lid opening protection locks and comprehensive safety measures.
• The SQ model features a low bed design, making it highly suitable for the retrieval of sterilized items. Compatible for overseas use with a wide power range of AC100-120V and AC200-240V.

Common Specification

Specifications	SN Series
System	Automatic high-pressure steam sterilization
Operating temp. range	45-135℃ 45-80℃ (preheat temp.) 45-60℃ (retain temp.) 65-100℃ (dissolution) 105-135℃ (sterilizing)
Temp. unit	0.1℃
Max. working pressure	0.255MPa
Lid Structure	Manual upward opening and downward closing with an interlock for safety
Material	3mm thick corrosion-resistant stainless steel, featuring a mirror finish surface
Design operational life	20 years
Design pressure	0.42MPa
Design temp.	151℃
Exhaust valve	One quick exhaust valve and one slow release valve
Options	Sample sensor interface (1/4), data logger sensor interface (1/4), pressure gauge interface (on solenoid valve piping)
Cooling fan blade	Axial fan motor
Temp. control, display/setting method	PID control by microprocessor, digital display/digital setting by ▲/▼ keys
Timer	Timer: 0 or 1 min~99 h 59 min, timer resolution: 1 min
Operation functions	Instrument sterilization, liquid sterilization, sterilization and retain temp., dissolution and retain temp., manual mode
Other functions	Key locking, presetting, saving, preheating, forced cooling, sample temperature sensor (option), pattern locking, alarm log saving (20 pcs), display of accumulated working time/present time, ON–OFF beeping setting
Safety device	Sensor failure detection, SSR short–circuit detection, broken heater wire detection, prevention of air burning (liquid expansion type thermocouple), alarm against the absence of drain bottle, failure in locking the lid detection, memory error detection, pressure relief valve (0.255 MPa)
Pressure vessel specification	Class I pressure vessel
Options (expanded)	Biosafety filtration system, sample temperature sensor, internal chamber temperature measurement sensor, data logger, temperature output terminal (4~20mA), external alarm output terminal, time–up output terminal, standard basket, extended height basket

Difference Between Model

Specifications	SN210C	SN310C	SN510C	SQ510C	SQ810C
External dimensions (W×D×H mm)	460×590×848	460×590×848	460×590×1058	520×660×881	520×660×1161
Effective dimensions of chamber (⌀×H mm)	300×305	300×445	300×665	370×470	370×750
Internal effective capacity of chamber	20L	32L	47L	50L	80L
Weight	Approx. 65kg	Approx. 75kg	Approx. 85kg	Approx. 95kg	Approx. 105kg
Power supply (50/60Hz) rated current	AC220V 9A	AC220V 9A	AC220V 10.5A	AC220V 11A	AC220V 14A
Accessories	Basket OSM-60 (⌀274×H125mm), 2 pcs	Basket OSM-70 (⌀274×H200mm), 2 pcs	Basket OSM-70 (⌀274×H200mm), 3 pcs	Basket OSQ-90 (⌀344×H200mm), 2 pcs	Basket OSQ-90 (⌀344×H300mm), 2 pcs

---

As the official distributor of Yamato Scientific in Indonesia, PT Universal Labora Analitika is committed to providing reliable autoclaves solutions, along with technical consultation, delivery, and full after-sales support.
