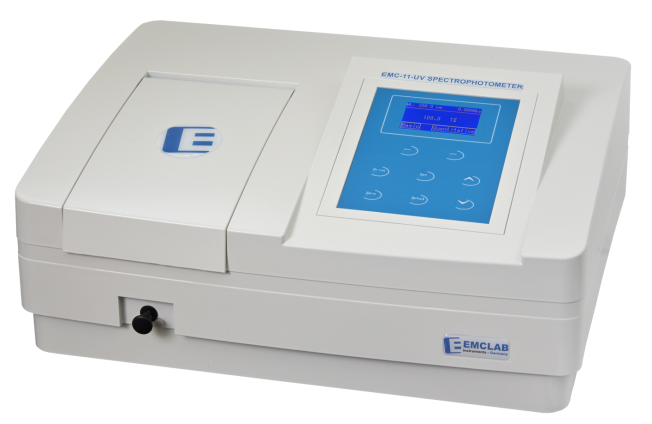

EMC-11-UV Single Beam

UV/VIS Spectrophotometer

EMC-11-UV

Features:

• LCD screen (128*64 dots) Self-check system
• Auto Zero and Blank
• Sample compartment for different cell holders
• Save the results
• Up to 200 methods & 100 standard curves can be stored
• Incl. PC-Software EMC- λ Lambda (Wavelength Measurement,
• Spectrum Scan, Quantitative Measurement, Kinetic Measurement, DNA/RNA Measurement) Incl. EMCLAB Works Calibration Certificate

The 11-UV is widely used in colleges and enterprises for general quantitative analysis and experiments. The instrument’s internal storage offers space for up to 100 standard curves and 200 methods. Via the PC software EMC- λ Lambda, kinetic measurements and wavelength scans can also be performed with the instrument.

Specifications	EMC-11-UV
Wavelength Range	200–1000 nm
Spectral Bandwidth	4 nm
Optical System	Single Beam, grating 1200 lines/mm
Wavelength Accuracy	±2 nm
Wavelength Repeatability	1 nm
Photometric Accuracy	≤0.5 % T or ±0.003A@1A
Photometric Repeatability	≤0.2 % T
Photometric Range	0–200 % T, -0.3 – 3A, 0–9999 Conc.
Stray Light	0.2 % T
Stability	±0.002A/h@500 nm
Noise	0.003A@500 nm
Detector	Silicone Photodiode
Display	LCD 128*64 dots
Central beam height	15 mm
Standard Cell Holder	4-position cell holder 10×10 mm
Light Source	Tungsten & Deuterium lamp
Output	USB port & Parallel port (printer)
Power Requirement	AC 110/230V 50/60 Hz
Dimensions (L×W×H)	490 × 376 × 220 mm
Weight	14 kg

---

As the authorized distributor of EMCLAB in Indonesia, PT Universal Labora Analitika is ready to support your spectrophotometric analysis needs from product selection to installation and technical service. Contact us now!
