Fume Hoods | Low airflow

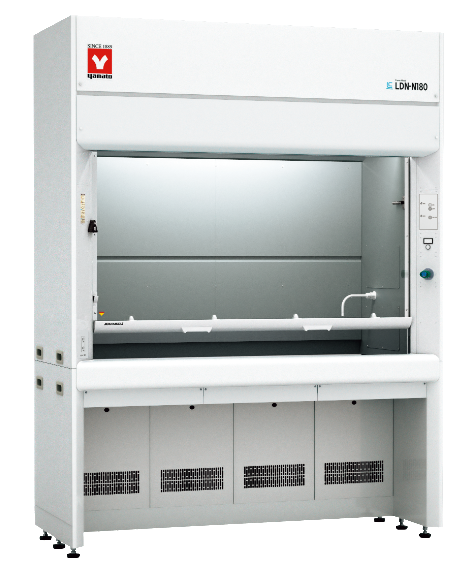

LDN

Safe, comfortable, energy-saving fume hood.

With a unique exhaust design, the exhaust air volume is reduced by about 40%, while maintaining the same containment performance as previous products.

• Through a unique high-efficiency exhaust design, excellent containment performance is achieved even with low exhaust air volume, reducing exhaust air volume by approximately 40%.
• Due to the low air volume, it effectively reduces the costs of air conditioning equipment, operational costs, and environmental load, achieving energy savings with LED lighting.
• High containment performance is realized through our company's exclusive new slit-type buffer plate, a two-layer flow slit method that drives air, and the containment function has passed the EN test verification (European Standard/EN14175-3: 2003).
• The front glass door is larger than previous products, providing a better internal view. Additionally, it features a dual-safety drop prevention structure for the door and a glass door opening limit positioning (with key) as standard configuration.
• An optional LED digital display air volume monitor is available for easy daily management, which alerts laboratory personnel with a buzzer and indicator light when air volume is abnormally low.

Common Specifications

Model	LDN Series
Exterior material	Cold-rolled steel plate, surface chemical-resistant powder coating
Interior material	Special board material without asbestos, slit-type buffer plate
Working surface	Ceramic (S), ceramic steel plate (K)
Glass door	Reinforced glass, 6 mm thick, weight-balanced type
Water faucet	1 pc
Socket	AC220V 10A, 2 pcs
Internal lighting (LED)	1 pc
Suction method	Through front supply on the operation surface (sucking in indoor air)
Safety mechanism	Dual prevention structure for door drop, door opening control positioning (with key), exhaust delay timer, air volume monitoring
Options	Air volume monitoring (LED digital display)

Model Comparison Table

Model	LDN-120	LDN-150	LDN-180
External Dimensions (DxHxW)	750×2350×1200 mm	750×2350×1500 mm	750×2350×1800 mm
Weight	Approx. 320 kg	Approx. 350 kg	Approx. 390 kg
Front Average Airflow Speed	0.25 / 0.4	0.25 / 0.4	0.25 / 0.4
Exhaust Air Volume	7 m³/min / 11 m³/min	9 m³/min / 14 m³/min	11 m³/min / 17 m³/min
Internal Static Pressure	10 Pa / 22 Pa	14 Pa / 34 Pa	23 Pa / 55 Pa
Containment Performance (EN Test)	Door opening: 500 mm, control airflow: 0.25 m/s. Containment performance: Average below 0.5 ppm (German BG CHEMIE recommendation 0.65 ppm)	Door opening: 500 mm, control airflow: 0.25 m/s. Containment performance: Average below 0.5 ppm (German BG CHEMIE recommendation 0.65 ppm)	Door opening: 500 mm, control airflow: 0.25 m/s. Containment performance: Average below 0.5 ppm (German BG CHEMIE recommendation 0.65 ppm)

---
