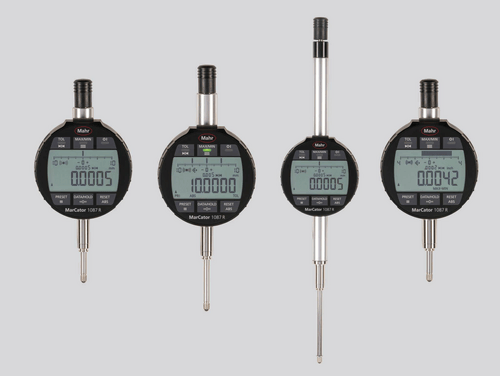

Mahr Digital Indicators

MarCator 1086 R

Digital indicator

FUNCTIONS

• ON/OFF
• RESET (set display to zero)
• mm/inch
• Reversal of counting direction
• PRESET (for entering a numerical value)
• TOL (enter tolerance limit values)
• <0> (tolerance GO / NO GO display mode)
• ABS (display can be set to zero without losing reference to preset)
• DATA (data transmission)
• Factor (adjustable)
• LOCK (individual key lock)

FEATURES

• Integrated wireless transmitter
• High contrast LCD
• Operating and display unit (bezel) can be rotated through 280°
• Mounting shank and measuring spindle are both made of hardened stainless steel
• Immediate measurements due to the Reference System
• Software: MarCom Professional free download: www.mahr.com/ marcom (only for Mahr data cables and wireless systems with USB and RS– 232 interface)
• Digit height: 11 mm
• Data interface: Integrated wireless, USB, Digimatic, Opto RS– 232C
• Battery type: CR 2450N (3V Lithium)
• IP protection category: IP 42
• Package contains: instruction manual, battery

Application

• Comprehensive measuring function for static measurements such as lengths, distances and length differences

TECHNICAL DATA

Order no.	Type	Measuring span (mm)	Measuring span (inch)	Resolution (mm)	Resolution (inch)	Error limit (mm)	Error limit over 50 graduations (mm)	Measuring force (N)	Standard	Lifting protection cap
4337624	1086 Ri	12.5	0.5″	0.0005, 0.001, 0.002, 0.005, 0.01	.00002″, .00005″, .0001″, .0002″, .0005″	0.004	0.002	0.65–0.9	Factory standard	●
4337625	1086 Ri	25	1″	0.0005, 0.001, 0.002, 0.005, 0.01	.00002″, .00005″, .0001″, .0002″, .0005″	0.004	0.002	0.65–1.15	Factory standard	●
4337626	1086 Ri	50	2″	0.0005, 0.001, 0.002, 0.005, 0.01	.00002″, .00005″, .0001″, .0002″, .0005″	0.007	0.002	1.25–2.7	Factory standard	●
4337627	1086 Ri	100	4″	0.0005, 0.001, 0.002, 0.005, 0.01	.00002″, .00005″, .0001″, .0002″, .0005″	0.008	0.002	1.8–3.5	Factory standard	●
4337628	1086 Ri	25	1″	0.0005, 0.001, 0.002, 0.005, 0.01	.00002″, .00005″, .0001″, .0002″, .0005″	0.004	0.002	0–0	Factory standard	●

---
