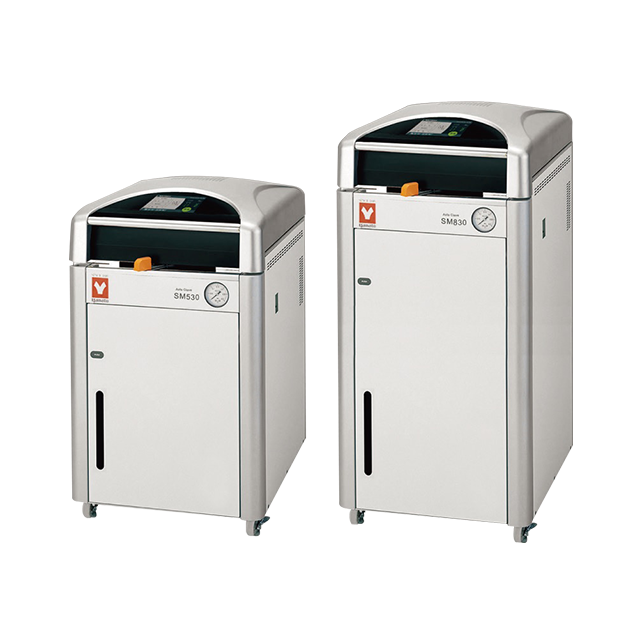

Yamato SM Series

Lab Autoclaves | Automatic Sterilization, Drying Function

SM510C/810C/530/830

High-performance sterilizer with fully automatic operation for sterilization and drying.

Features

• 7-inch large touchscreen, easy operation with options for Chinese, Japanese and English languages, along with a three-level authorization management system.
• Maximum sterilizing temperature goes up to 135℃, suitable for protein modification.
• By simple setting and operation, these sterilizers manage ordinary sterilization, sterilization of culture mediums and liquids, and dissolution of culture mediums.
• Custom programs can be saved for repeated use.
• Standard equipped with cooling fan to shorten cool down time.
• Equipped with multiple pressure lid opening protection locks and comprehensive safety measures.
• Display power consumption, accumulated power usage, CO2 emissions, total power-on time, accumulated operating time, and accumulated times of operations.
• SM530/830 has obtained medical device registration and disinfection certificates.

Common Specifications

Specifications	SM Series
System	Automatic high-pressure steam sterilization+drying
Operating temp. range	45-135℃; 45-80℃ (preheat temp.)/45-60℃ (retain temp.)/60~110℃ (dissolution)/105-135℃ (sterilizing)/135-150℃ (drying)
Temp. unit	0.1℃
Max. working pressure	0.255MPa
Lid Structure	Manual upward opening and downward closing with an interlock for safety
Material	3mm thick corrosion-resistant stainless steel, featuring a mirror finish surface
Design operational life	20 years
Design pressure	0.42MPa
Design temp.	151℃
Sterilization heater	110V, 1210W×2
Exhaust valve	1 fast exhaust valve, 1 auxiliary exhaust valve, 1 slow exhaust valve
Options	Sample sensor interface (1/4), data logger sensor interface (1/4), pressure gauge interface (on the auxiliary exhaust solenoid valve piping)
Cooling fan blade	Axial fan motor
Temp. control method	PID control by microprocessor
Temp. control setting/display method	7-inch color LCD touchscreen for display and settings
Timer	1 min-99 h 59 min, resolution: 1 min or 100 h~999 h, resolution: 1 h
Operation functions	Instrument sterilization, liquid sterilization, sterilization and retain temp., dissolution and retain temp., sterilization drying, drying
Additional functions	Power consumption, accumulated power usage, CO₂ emissions, accumulated power-on time, accumulated operating time, and accumulated times of operations
Other functions	Key locking, presetting, saving, preheating, forced cooling, sample temperature sensor (option), pattern locking, alarm log saving (20 pcs), display of present time, ON–OFF beeping setting, language switch function (Chinese/Japanese/English) and three-level authorization management system
Safety device	Sensor failure detection, SSR short-circuit detection, broken heater wire detection, prevention of air burning (liquid expansion type thermometer), alarm against the absence of drain bottle, failure in locking the lid detection, memory error detection, pressure relief valve (0.255 MPa), overpressure alarm
Pressure vessel specification	Class I pressure vessel
Options (additional row)	Biosafety filtration system, sample temperature sensor, internal chamber temperature measurement sensor, miniprinter, data logger, temperature output terminal (4~20mA), external alarm output terminal, time-up output terminal, standard basket, extended height basket

Difference Between Models

Specifications	SM510C	SM810C	SM530	SM830
** Medical device registration certificate**	None	None	Yes	Yes
Dry heat heater	110V, 295W×2+455W×2	110V, 275W×2+625W×2	110V, 295W×2+455W×2	110V, 275W×2+625W×2
External dimensions (W×D×H mm)	520×660×881	520×660×1161	520×660×881	520×660×1161
Effective dimensions of chamber (diameter×height mm)	370×470	370×750	370×470	370×750
Internal effective capacity of chamber	50L	80L	50L	80L
Weight	Approx. 113kg	Approx. 137kg	Approx. 113kg	Approx. 137kg
Power supply/rated current	AC220V 13A	AC220V 13A	AC220V 13A	AC220V 13A
Accessories	Basket CSQ-90 (diameter 344×height 200mm), 2 PCS	Basket CSQ-90H (diameter 344×height 300mm), 2 PCS	Basket CSQ-90 (diameter 344×height 200mm), 2 PCS	Basket CSQ-90H (diameter 344×height 300mm), 2 PCS

---

As the official distributor of Yamato Scientific in Indonesia, PT Universal Labora Analitika is committed to providing reliable sterilizer solutions, along with technical consultation, delivery, and full after-sales support.
