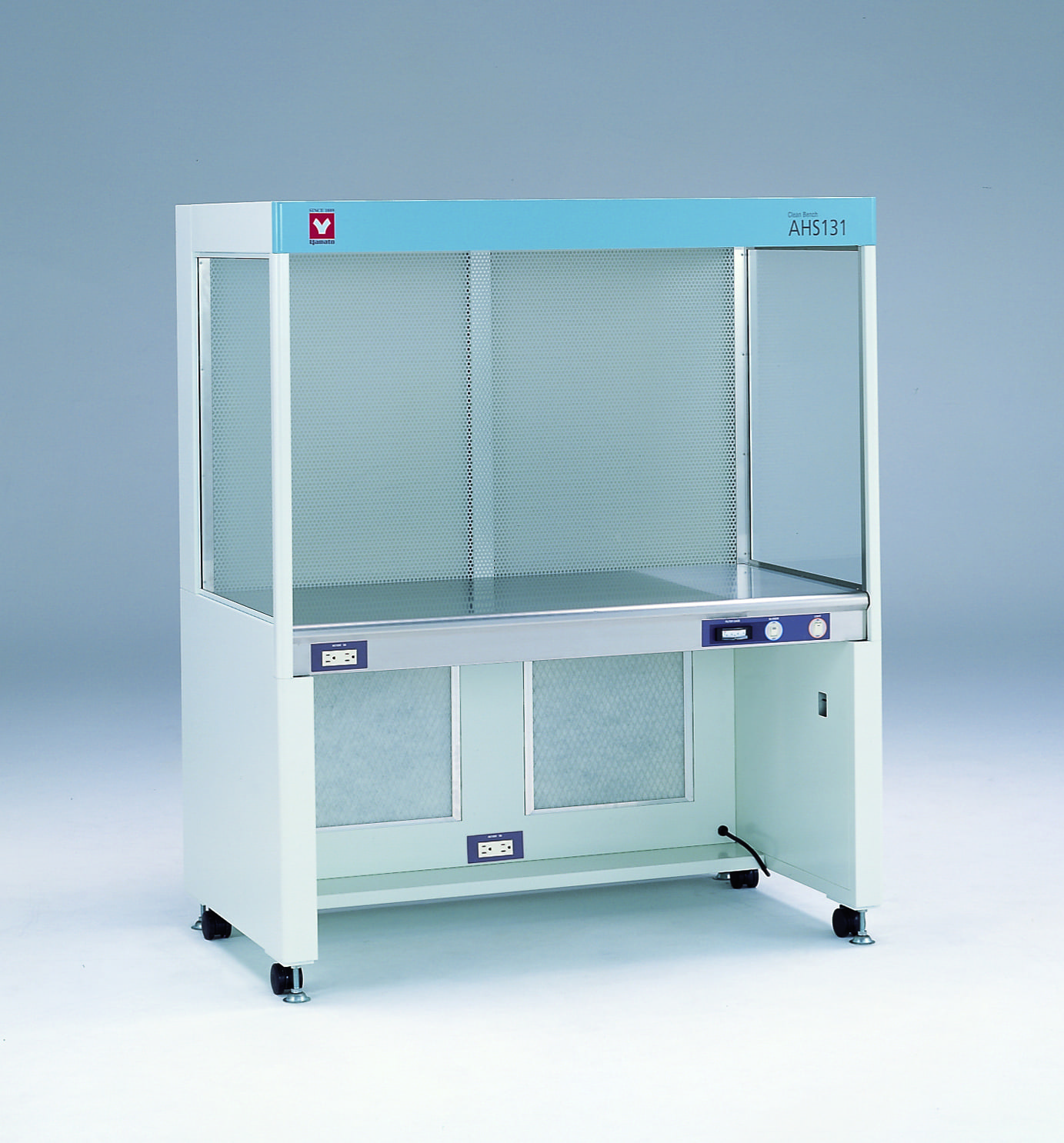

Yamato AHS Series

Clean Benches for Industry | Industrial Use, Horizontal Airflow

AHS

The airflow blows from the back of the workspace to the front, ensuring a spacious work area without a front door.

Specifications

Type	AHS101		AHS131		AHS161		AHS191
	M	H	M	H	M	H	M	H
Airflow direction	Horizontal
Cleanliness	Class 100
Blowing wind speed (m/sec)	Initial 0.40 or more, final approximately 0.20
Illuminance (lx)	1000 (center of working surface)
Working surface load capacity (kg)	50
Air volume (m³/min)	Approx. 16	Approx. 20	Approx. 22	Approx. 27	Approx. 27	Approx. 33	Approx. 32	Approx. 39
Exterior material	Cold-rolled steel plate (chemical resistant powder coating)
Internal material	Stainless steel (SUS304), brushed finish
Working surface	Stainless steel (SUS304), brushed finish
Front door	Tempered glass
HEPA filter (mm)	915×915×65 / 1 pc		915×915×65 / 1 pc		610×760×65 / 1 unit		610×915×65 / 1 pc
	Collection efficiency for 0.3µm particles over 99.9%
Coarse filter	400×400×15 / 1 pc		400×400×15 / 2 pcs
Socket	220V 5A, 2 pcs
Fluorescent lamp	32W×2				40W×2
Air blower	150W×1		120W×2				150W×2
Level adjustment	Adjusted via legs (-18~+40mm)
Differential pressure display	Differential pressure gauges
Body shape	Integrated type
Air blower	Lower part set
Overcurrent protector	Leakage circuit breaker, single-phase AC 220V 20A
Power supply	Single phase AC220V 15A
Working space height (mm)	720		875		720		875
External dimensions (mm)	W980×D770		W1300×D770		W1600×D770		W1910×D770
Total height (mm)	1570 (1975 / 2390)		1725 (1975 / 2390)		1570 (1975 / 2390)		1725 (1975 / 2390)
Weight (kg)	170		190		210		230
Accessories	Leg adjustment fasteners (4 units)
Usage environment conditions	Temperature 5°C–35°C, humidity below 85% RH
Options	Wind speed controller: blowing wind speed display and variable wind speed device

---

As the authorized distributor of Yamato Scientific in Indonesia, PT Universal Labora Analitika is ready to support your laboratory needs from product consultation to installation and after-sales service. For more details and catalog please contact us.
