Mahr Incremental Probes

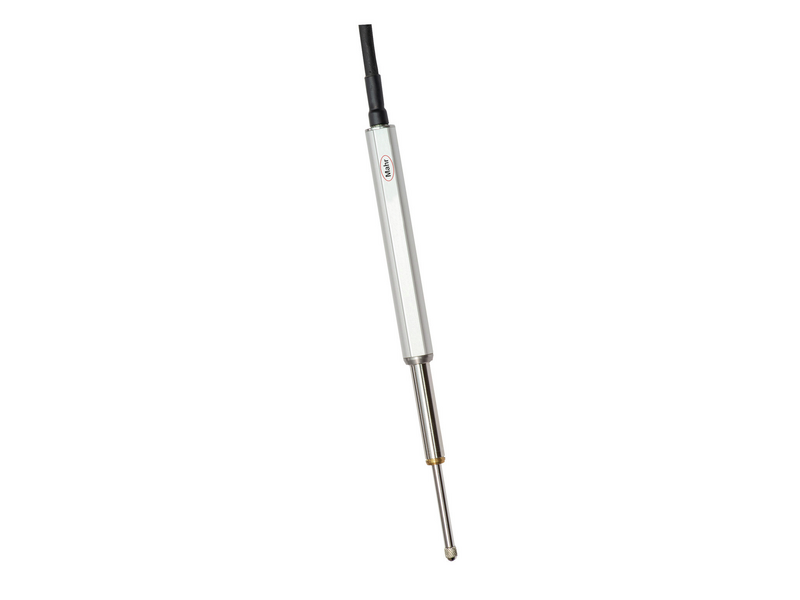

Millimar P 1512 V / P 1530 V

Incremental probe

FEATURES

• Maximum measuring accuracy for long measuring length
• Compact dimensions
• Particularly durable ball bearing guide
• Reference mark for position determination
• 8 mm clamping shaft
• Package contains: instruction manual, test certificate

TECHNICAL DATA

Model	P 1512 V (5315081)	P 1530 V (5315311)
Measuring span (mm)	12	30
Measuring span (inch)	0.47	1.18
Measuring force (N)	0.6 – 1.2 N	0.4 – 1 N
Maximum shear force (N)	0.8	0.8
Measuring system	DIADUR-glass scale with incremental graduation	DIADUR-glass scale with incremental graduation
System accuracy (µm)	1.0	1.0
Resolution	20 µm	20 µm
Output signal	1 Vpp	1 Vpp
Max measuring speed	0.5 m/s	0.5 m/s
IP protection category	IP 67	IP 64
Cable length (m)	1.5	1.5
Working temperature (°C)	20	20
